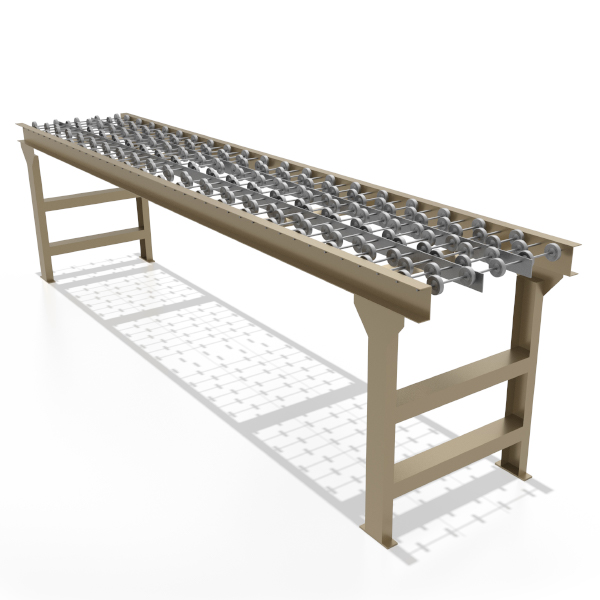

Steel Gravity Skatewheel Conveyor

Brand: Hytrol

Model Number:

Enlarge

Model Number: MODEL-OAW-WPF-L

Gravity Skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.

Will not ship in a continuous length if not in an increment of 5 ft. Will ship in some combination of 5 ft and 10 ft increments with no length shorter than 5 ft.

Product Description
Gravity Skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.
- 4 Widths
- Powder Painted Steel Frames
- Axles on 3 in. or 4 in. Centers

Specifications

Capacity	Max load per wheel: 65 lbs
Axles	1/4 in. dia., threaded one end with locknut. Spaced on 3 in. centers.
Wheels	1 15/16 in. O.D. ball bearings run in hardened raceway with life-time lubrication. Corrosion resistant aluminum or zinc-coated steel.
Frame Capacity	Max Distributed Live Load Per Foot: 31 lbs
Height Added to Supports	2 4/5 in
Couplings	Butt Couplings on both ends.
