Configure Your Conveyor

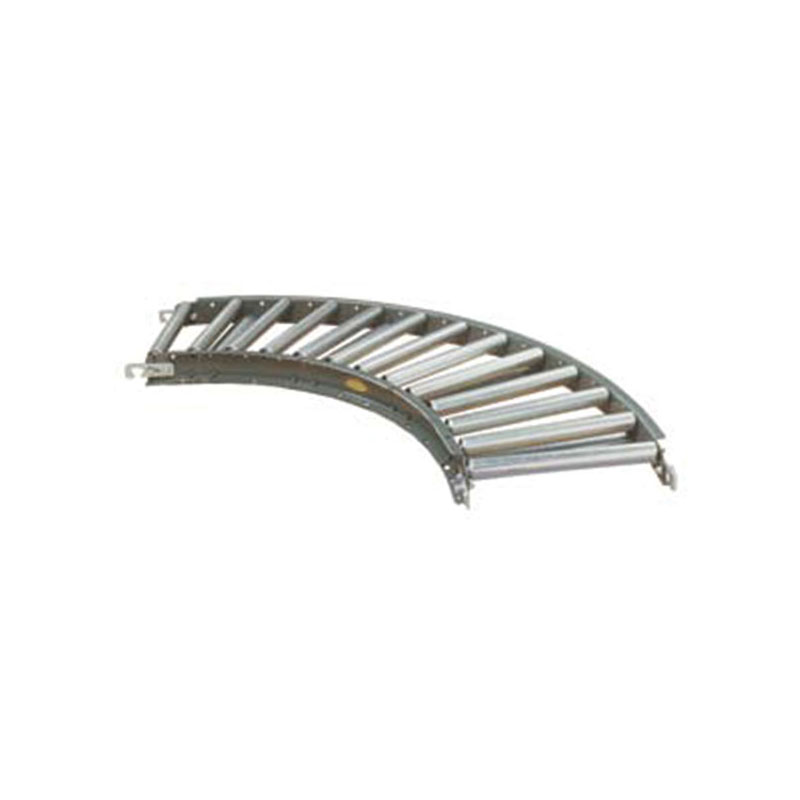

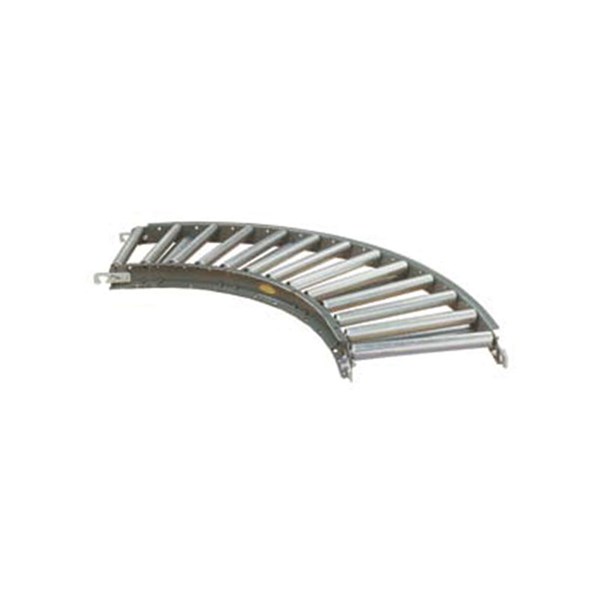

Steel 1 3/8" Diameter Gravity Roller Curve Conveyor

Brand: Hytrol
Model Number: SSRC-12-90-3
ssrc
Enlarge
Model Number: MODEL-OAW-C-RC

Gravity Roller Curves add to the versatility of straight conveyors. Curves provide smooth product flow through turns. Curves will convey product with minimum amount of pitch based on weight and size. Guard rails (optional item) may be added for product protection.
  • Gravity Roller Curves add to the versatility of straight conveyors. Curves provide smooth product flow through turns. Curves will convey product with minimum amount of pitch based on weight and size. Guard rails (optional item) may be added for product protection.
    • 4 Widths
    • Powder Painted Steel or Aluminum Frames
    • Gravity Hooks and Bolts Both Ends
    • 30°,45°, 60° and 90°
  • Axles 1/4 in. dia. round
    Capacity 45 lbs per roller
    Couplings Butt Couplings on both ends.

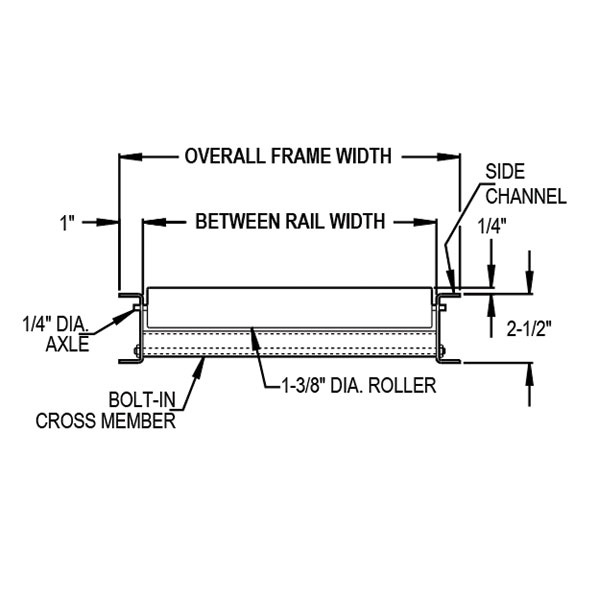

    Frame 2 1/2 in. deep x 1 in. flange x 12 ga. powder painted formed steel or 1/8 in. heat-treated aluminum channel with bolt-in cross members.
    Height Added to Supports 2 3/4 in

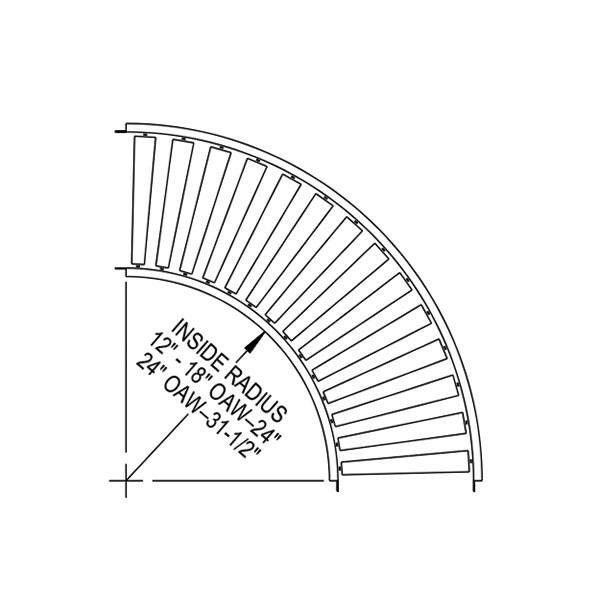

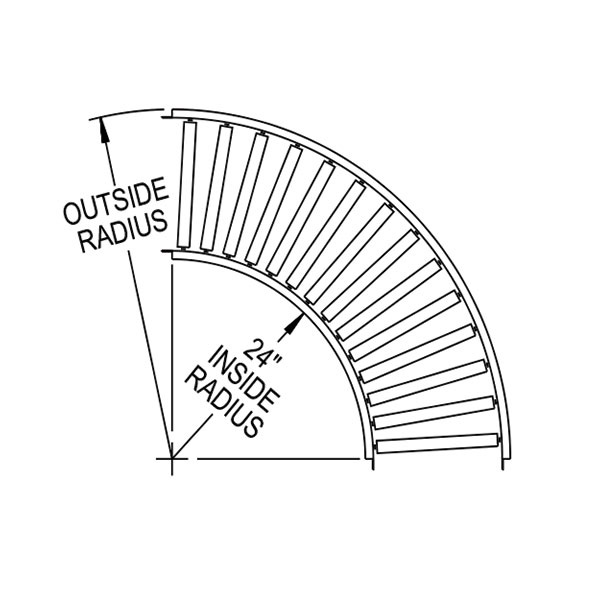

    Inside Radius 24 in.
    Outside Radius 39 in., 36 in., 42 in., 48 in.
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Feature Sheet
 Cut Sheet

  • Choose Your Base Options

    Overall Width (in)


    Curve Angle


    Roller Centers (in)



    Choose Your Quantity

    Number of conveyors. Each conveyor $323.30.

    Qty:

  • Conveyor Color

    Please note - colors other than green will extend lead time.  Contact for more details.



    Roller Setting



    Conveyor Curve Guard Rail

    No Guard Rail
    Adjustable Channel Guard Rail - Both Sides (Add $128.95)
    Adjustable Channel Guard Rail - Outside (Add $86.91)
    Adjustable Channel Guard Rail - Inside (Add $57.15)

  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 1

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 1 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 1
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: 70 lbs.

    Lead Time to Ship: Contact us for options.

    Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.

    Shipping & Handling Estimate

    $65.59

  • Steel 1 3/8" Diameter Gravity Roller Curve Conveyor

    SSRC-12-90-3
    Brand: Hytrol
    Base Price (per conveyor)
    $323.30
    Overall Width (in)
    12
    Curve Angle
    90
    Roller Centers (in)
    3 in.
    Equipment Options
    $0.00
    Conveyor Color
    Green
    Roller Setting
    1 3/8 in. dia. x 18 ga. galvanized steel or heat-treated aluminum tubes or 1 1/2 in. dia. galvanized tapered tubes. Spring loaded axle allows roller to be easily removed or inserted. Aluminum tapered tubes available, contact factory
    Conveyor Curve Guard Rail
    No Guard Rail
    Configured Price
    $323.30
    Conveyor Quantity
    1
    Supports (1 each)
    $79.40 ($79.40 ea.)
    Total Support Quantity
    1
    Shipping & Handling Estimate
    $65.59
    Total Price
    $468.29

    The configured product is ready to be ordered. If more information is necessary, check the box below.

-or-

Steel 1 3/8" Diameter Gravity Roller Curve Conveyor

Brand: Hytrol
Model Number: SSRC-12-90-3
Base Price (per conveyor) $323.30
Overall Width (in)12
Curve Angle90
Roller Centers (in)3 in.
Equipment Options
$0.00
Configured Price $323.30
Conveyor Quantity 1
Supports $79.40
Price Per Conveyor (1 each) $79.40 ea.
Total Support Quantity 1
Shipping & Handling Estimate $65.59
Total Price $468.29
