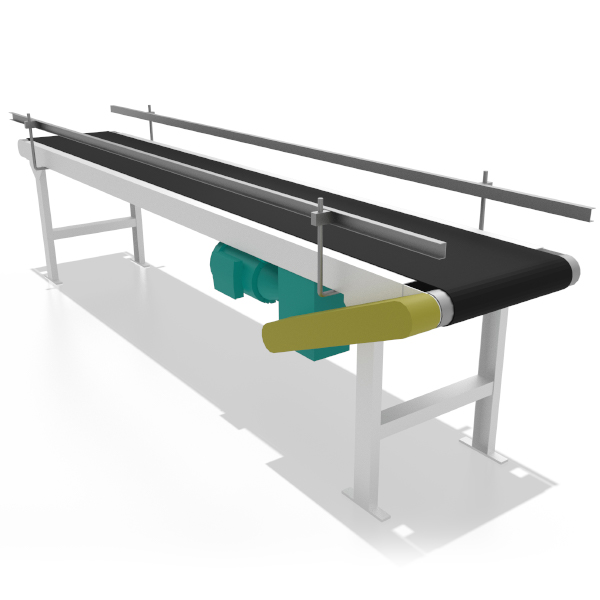

Slider Bed Belt Conveyor

Brand: Hytrol
Model Number: TA-10-6-6

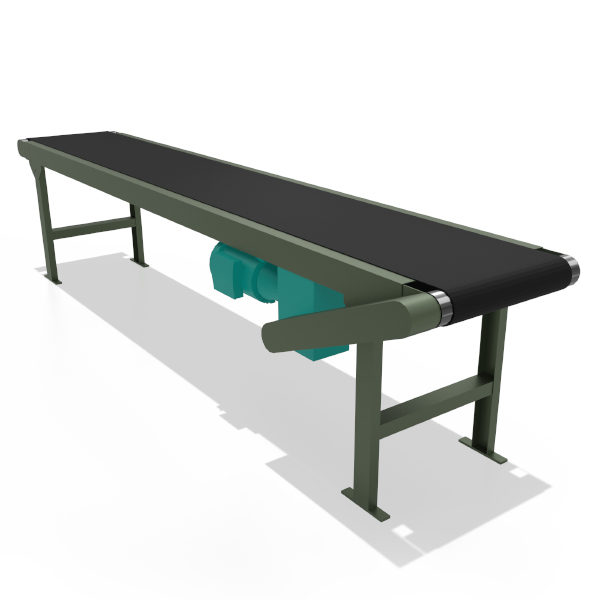

TA_Default
Enlarge
Model Number: MODEL-BEDW-BELTW-L

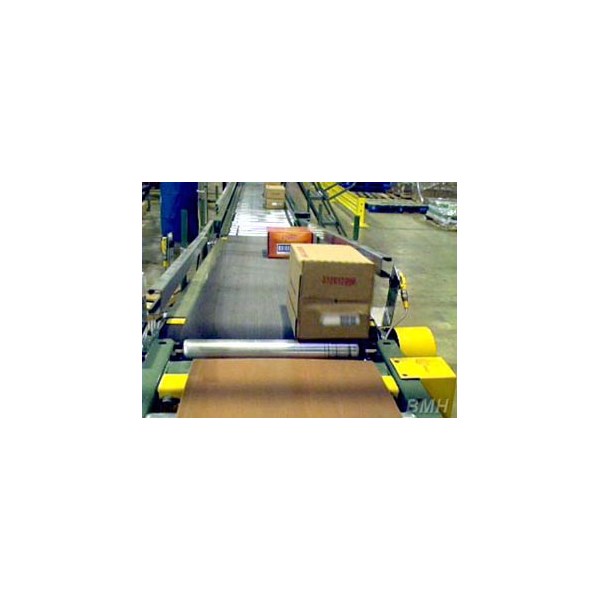

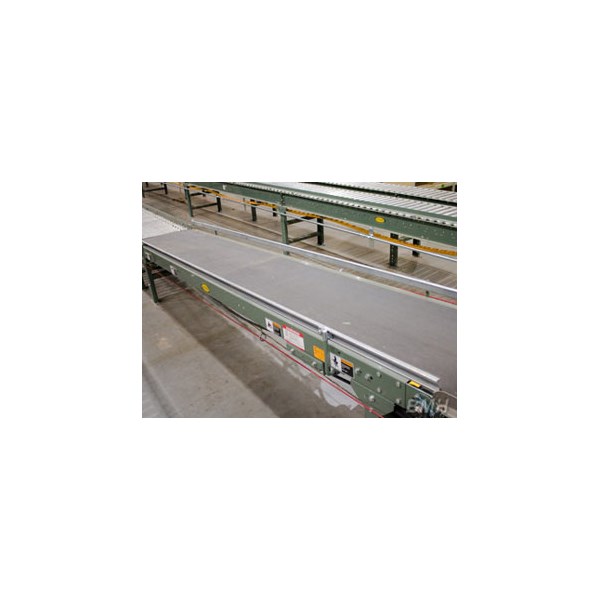

The Slider Bed Belt conveyor is used in most industries and is ideal for general transportation of totes, cartons, parts, and odd shaped items. This conveyor is good for progressive assembly; sorting, and packing; inspection; inclines and declines. This conveyor is not recommended for use with bulk materials (i.e. powders). The belt helps maintain product spacing and orientation.
  • The Slider Bed Belt Conveyor can contribute its popularity to its versatility. This conveyor features a simple design and slim profile so that it can be used in several different areas of application ranging from sortation and packaging, product assembly, as well as special engineering solutions such as manufacturing processes. The Slider Bed Belt Conveyor is available in 9 belt widths, reversible when configured with a center drive, and is easy to install and configure. The Slider Bed Belt Conveyor also features a metal bed that the belt rides along to provide smooth transportation of shock sensitive materials. It can also be used in an incline application with the use of the adjustable floor supports and/or ceiling supports.

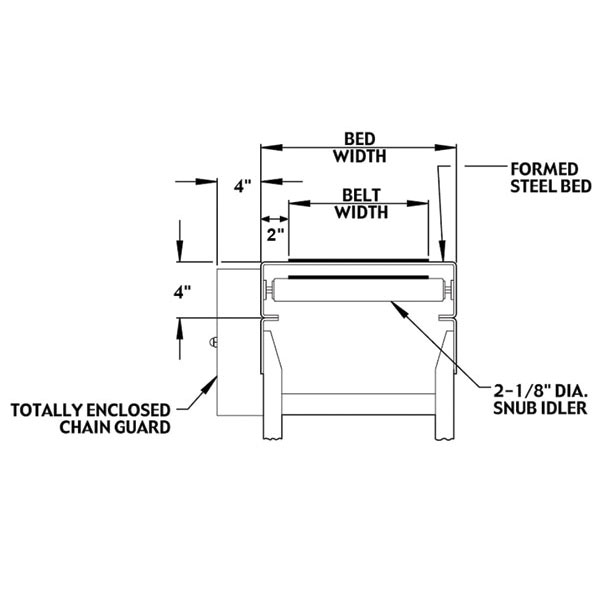

  • Drive Pulley 4" diameter with 1" diameter shaft at bearings, machine crowned and fully lagged.
    Snub Idler Adjustable 2-1/8" diameter with pre-lubricated bearings. Guards included.
    Return Idler Adjustable 1.9" diameter pre-lubricated ball bearings.
    Speed Reduction Sealed worm gear C-face speed reducer. No. 50 roller chain to drive pulley.

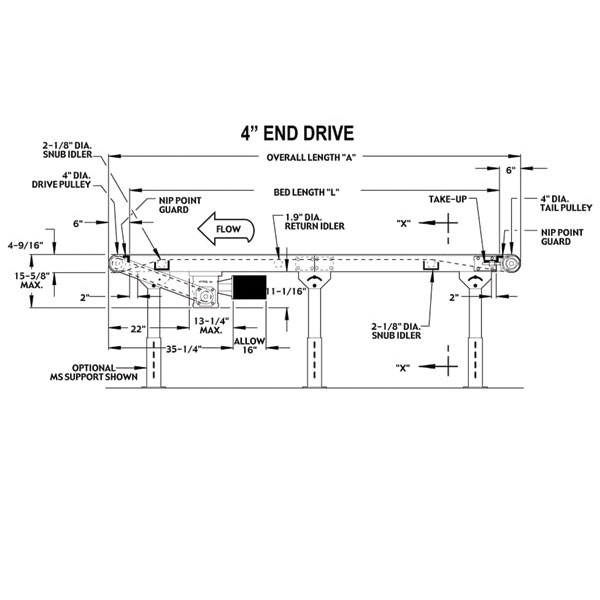

    End Drive Located on discharge end of conveyor, chain guard on left hand side.
    Height Added to Supports 4 1/8 in
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!

  • Choose Your Base Options

    Overall Width (in)


    Overall Length (ft)


    Choose Your Quantity

    Number of conveyors. Each conveyor $2,673.00.

    Qty:

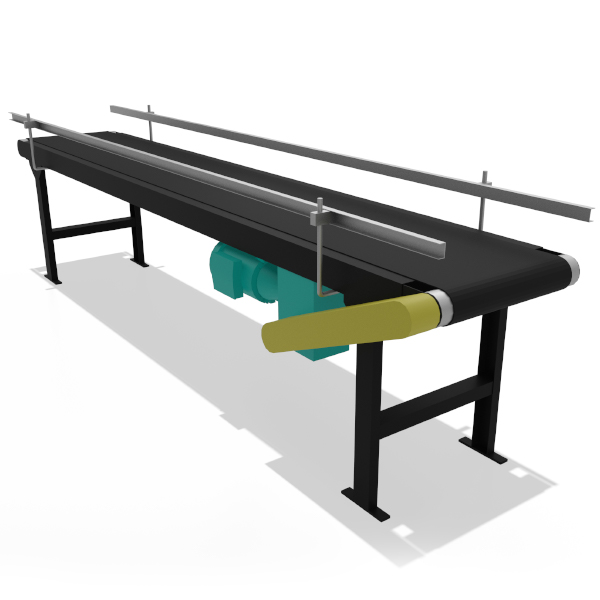

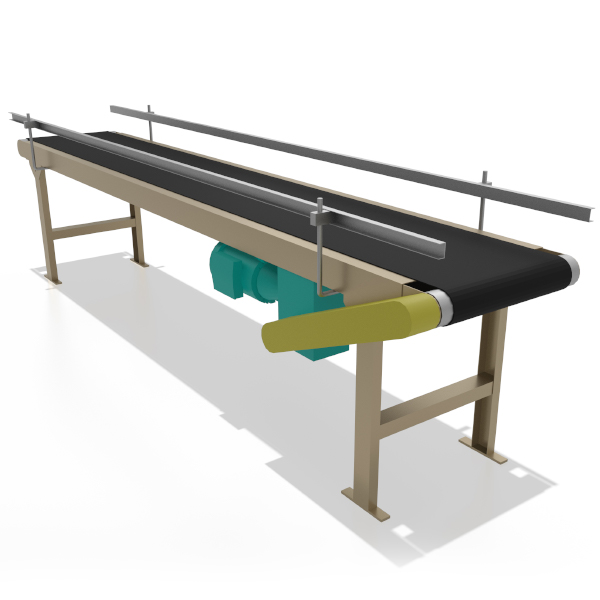

  • Conveyor Color

    Please note - colors other than green will extend lead time.  Contact for more details.



    Conveyor Speed



    Conveyor Motor

    Horsepower requirements are determined based upon conveyor length, product loading, elevation change and conveyor speed. Please contact us for assistance with motor size.

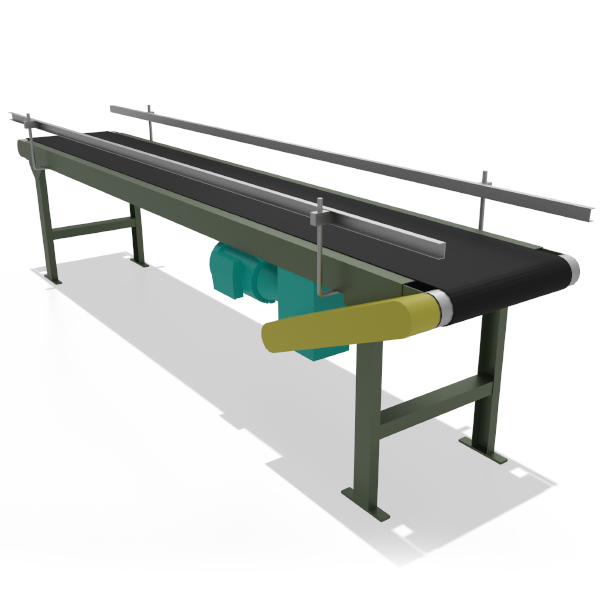

    Conveyor Guard Rail

    No Guard Rail
    Adjustable Channel Guard Rail - Both Sides (Add $13.60 per foot)
    Adjustable Channel Guard Rail - Left Side (Add $7.00 per foot)
    Adjustable Channel Guard Rail - Right Side (Add $7.00 per foot)

    Chain Guard Color



  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 2

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 2 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 2
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: 244 lbs.

    Lead Time to Ship: Contact us for options.

    Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.

    Shipping & Handling Estimate

    $197.80

  • Slider Bed Belt Conveyor

    TA-10-6-6
    Brand: Hytrol
    Base Price (per conveyor)
    $2,673.00
    Overall Width (in)
    10
    Equipment Options
    $0.00
    Conveyor Color
    Conveyor Speed
    Conveyor Motor
    Conveyor Guard Rail
    Chain Guard Color
    Configured Price
    $2,673.00
    Conveyor Quantity
    1
    Supports (2 each)
    $158.80 ($158.80 ea.)
    Total Support Quantity
    2
    Shipping & Handling Estimate
    $197.80
    Total Price
    $3,029.60

    The configured product is ready to be ordered. If more information is necessary, check the box below.

-or-

Slider Bed Belt Conveyor

Brand: Hytrol
Model Number: TA-10-6-6
Base Price (per conveyor) $2,673.00
Overall Width (in)10
Overall Length (ft)6
Equipment Options
$0.00
Configured Price $2,673.00
Conveyor Quantity 1
Supports $158.80
Price Per Conveyor (2 each) $158.80 ea.
Total Support Quantity 2
Shipping & Handling Estimate $197.80
Total Price $3,029.60
