Light Duty Portable Parts Conveyor - Model PCA

Light Duty Portable Parts Conveyor - 8' Long x 18" Wide

Model-PCA
Enlarge

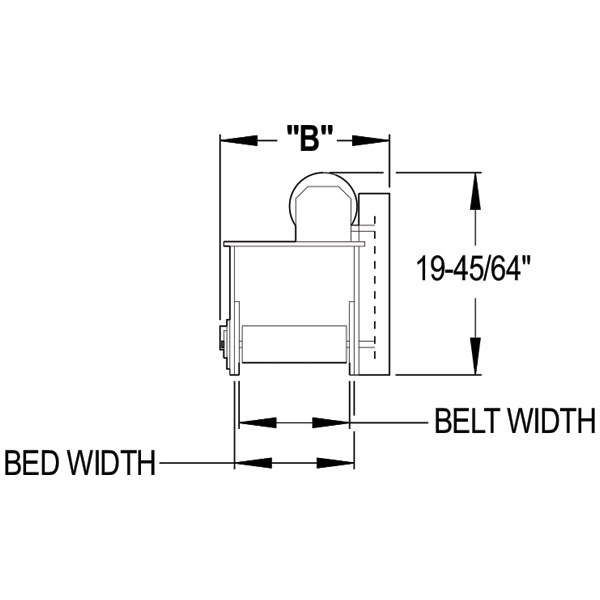

  • Model-PCA-End-View

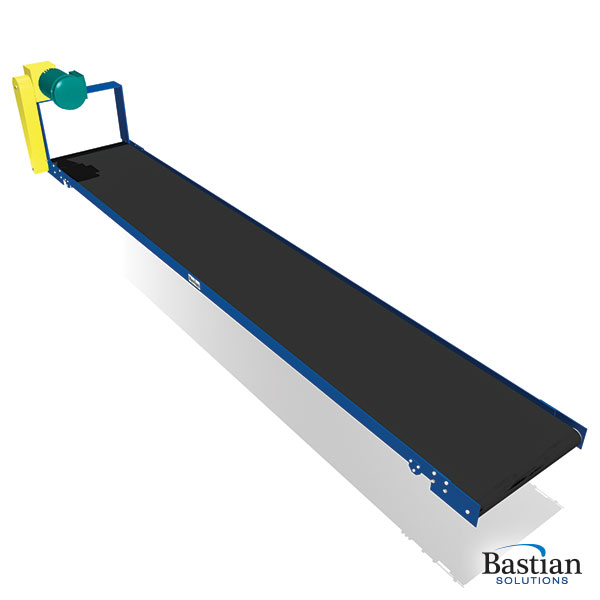

  • Model-PCA-rendering

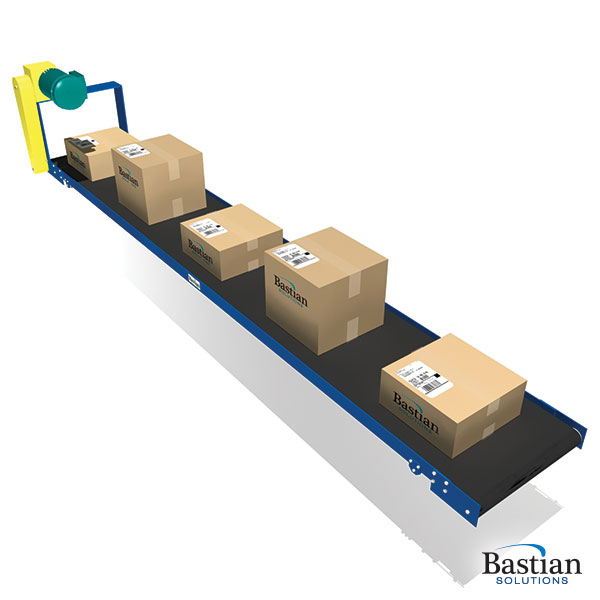

  • Model-PCA-rendering2
  • Model-PCA-rendering3

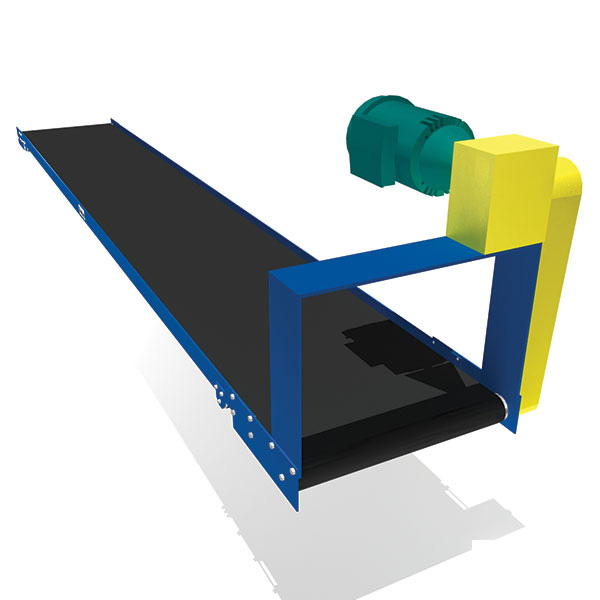

  • Model-PCA-rendering4

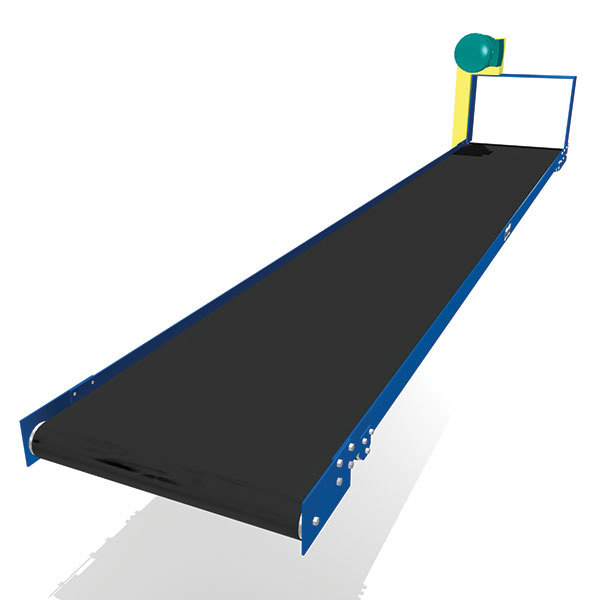

  • Model-PCA-rendering5

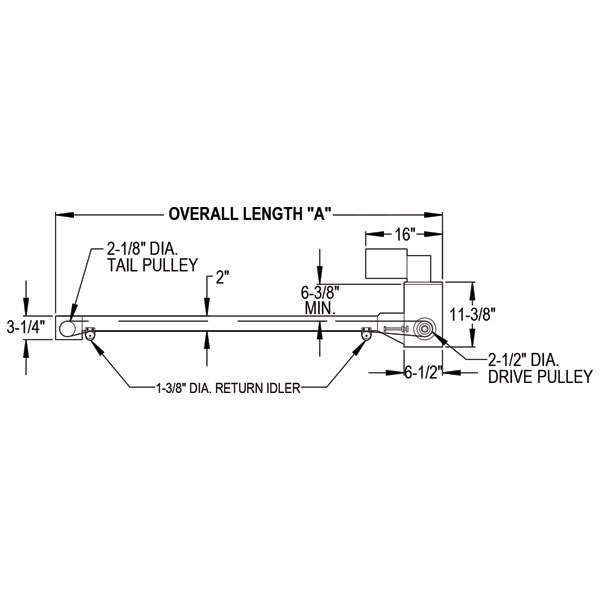

  • Model-PCA-Side-View

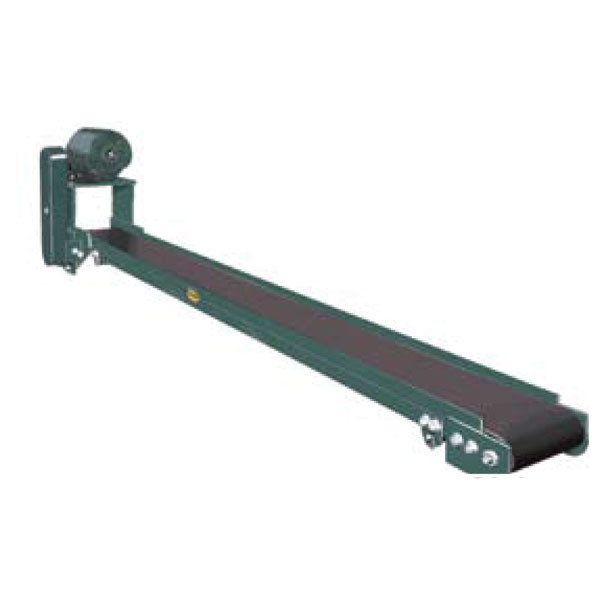

  • Model-PCA
  • The Model “PCA” Conveyor is easily positioned in or under punch presses, plastic injection molding machines, extruding equipment, and other machinery, where small steel or aluminum stampings, plastic parts, etc., must be quickly conveyed to hoppers or drums to keep production on the move.
    • 6 Belt Widths
    • Reversible
    • Overhead Drive
    • One Piece Troughed Bed
  • Overall Length 8 ft.
    Overall Width 4.5 in.
    Belt Width 4 in.
    Length "B" (See Drawing) 9.125 in.
    Motor 1/2 HP–230/460V–3 Ph. 60 Hz. Totally Enclosed Fan Cooled “C” face.
    Capacity Maximum load per linear foot of conveyor 10 lbs.
    Standard Speed Constant 65 FPM. Sealed worm gear “C” face speed reducer. No. 40 roller chain to drive pulley.
    Belt Type Black Ultimate 140 SD. Clipper lacing.
    Frame 12 ga. steel formed troughed bed section with 1 in. high vertical sides.
    Height Added to Supports 2 4/7 in
    Product Weight (lbs.) 116 lbs
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Cut Sheet
 Installation and Maintenance Manual
Brand: Hytrol
Model Number: PCA-8-4.5
The Model “PCA” Conveyor is easily positioned in or under punch presses, plastic injection molding machines, extruding equipment, and other machinery, where small steel or aluminum stampings, plastic parts, etc., must be quickly conveyed to hoppers or drums to keep production on the move.
