Galvanized Steel Gravity Roller Conveyor

Brand: Hytrol
Model Number: 19GSR-13-3-5

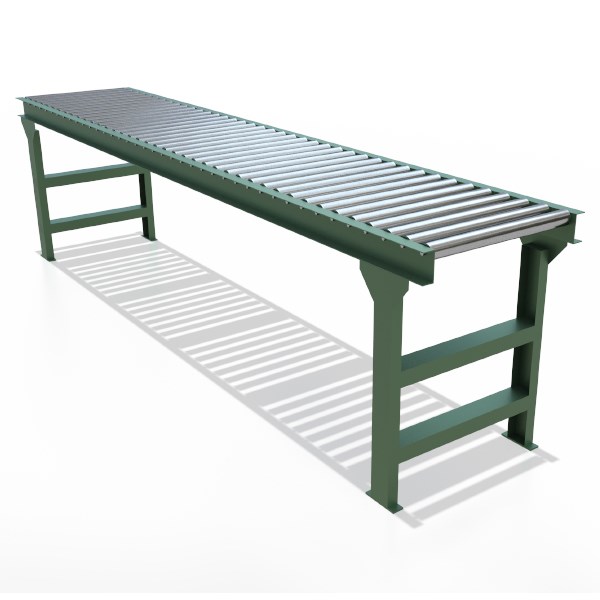

19GSR_Green
Enlarge
Model Number: MODEL-BR-RC-L

This 1.9" x 16 gauge galvanized steel gravity roller conveyor is perfect for conveying medium weight product in a permanently installed situation.

Will not ship in a continuous length if not in an increment of 5 ft. Will ship in some combination of 5 ft and 10 ft increments with no length shorter than 5 ft.
  • This 1.9" x 16 gauge galvanized steel gravity roller conveyor is perfect for conveying medium weight product in a permanently installed situation.

    The 1.9” diameter rollers are constructed with 16 gauge steel giving this conveyor a capacity equal to 210 lbs per roller. The rollers can be placed on 2.25”, 3”, 4.5”, 6”, 9”, or 12” centers depending on the type of application needed. Smaller or irregular shaped products tend to convey well with small roller spacing. The overall conveyor capacity increases as the roller center spacing decreases.

    The galvanized coating gives this conveyor a layer of rust prevention so that it can be used in less than ideal environments where moisture and wet products might be found. Just as a rule of thumb when selecting roller spacing, a minimum of three rollers under the product being conveyed is suggested.
  • Capacity Max load per roller: 210 lbs

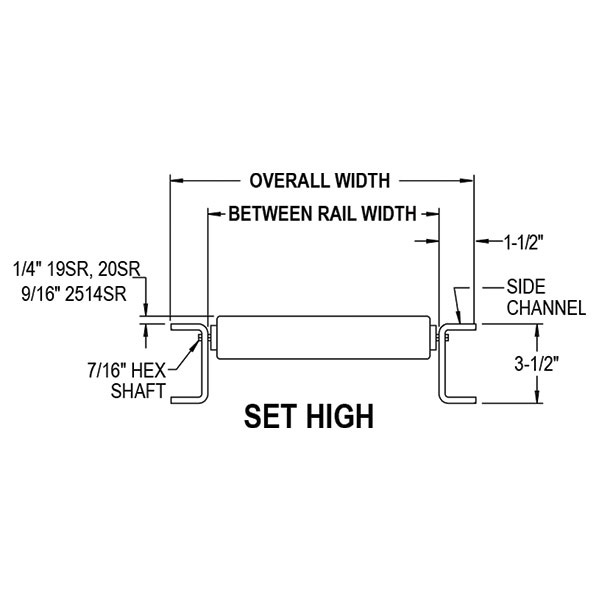

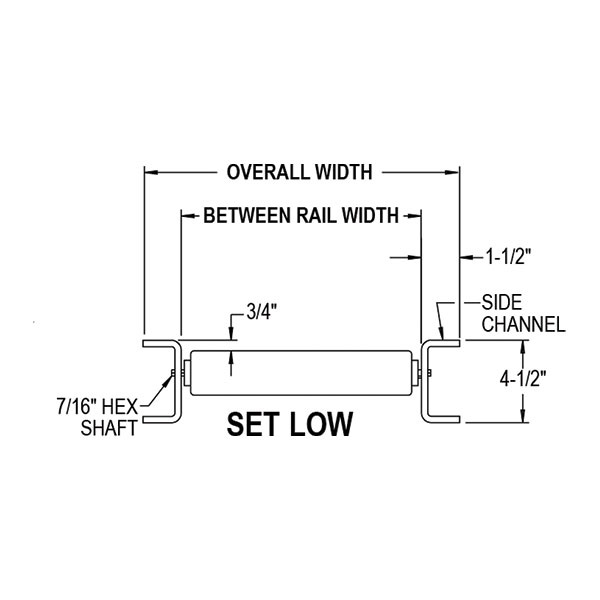

    Frame 3 1/2 in. or 4 1/2 in. deep x 1 1/2 in. flange x 10 ga. powder painted formed steel channel with boltin cross members
    Frame Capacity Max distributed live load per foot: 118 lbs, Max Distributed Live Load Per Foot: 118 lbs
    Height Added to Supports 3 3/4 in
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
  • Choose Your Base Options

    Overall Width (in)


    Roller Centers (in)


    Overall Length (ft)


    Choose Your Quantity

    Number of conveyors. Each conveyor $232.50.

    Qty:

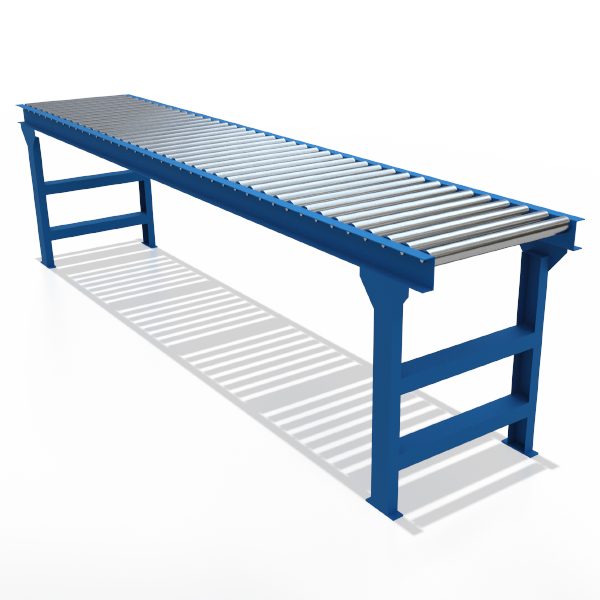

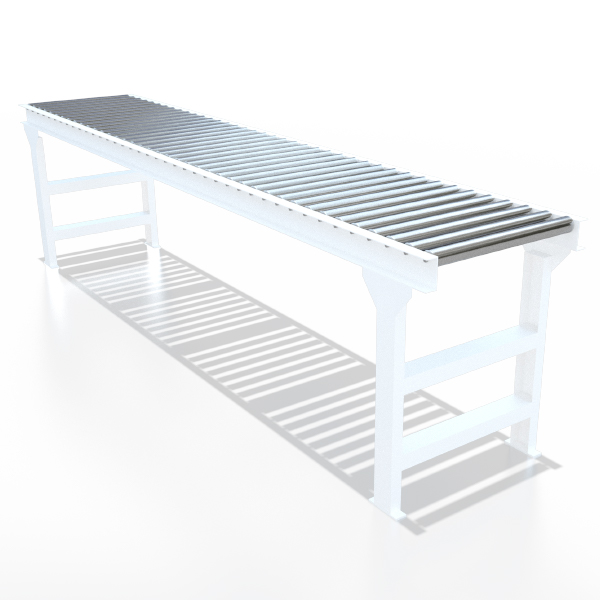

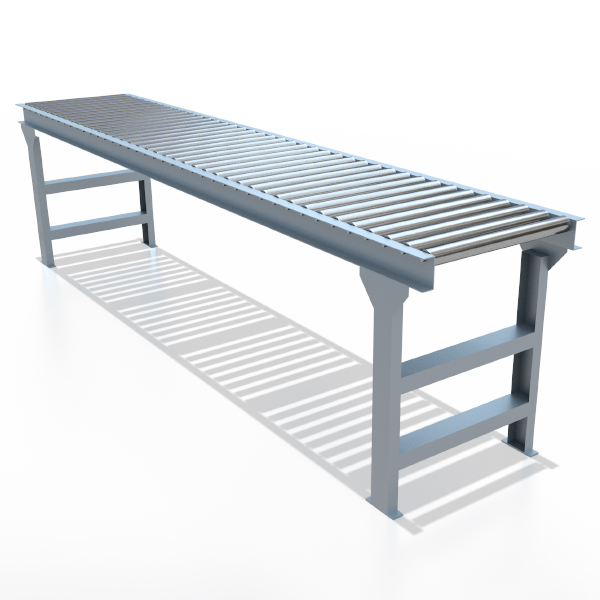

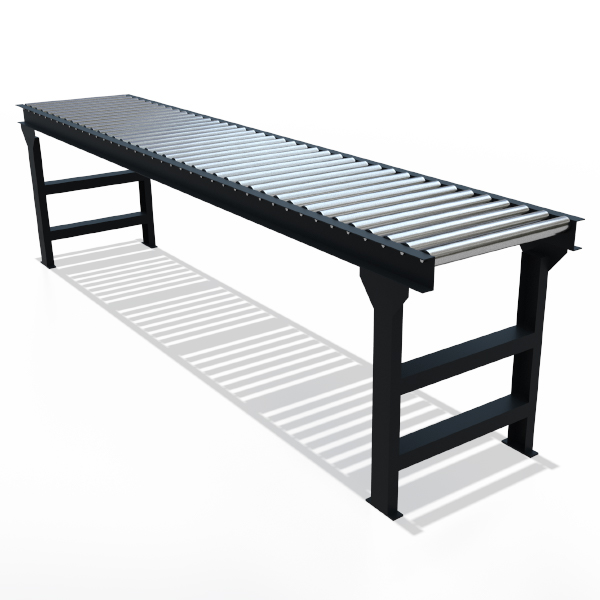

  • Conveyor Color

    Please note - colors other than green will extend lead time.  Contact for more details.



    Conveyor Guard Rail

    No Guard Rail
    Adjustable Channel Guard Rail - Both Sides (Add $9.01 per foot)
    Adjustable Channel Guard Rail - Left Side (Add $4.55 per foot)
    Adjustable Channel Guard Rail - Right Side (Add $4.55 per foot)
    Fixed Angle Guard Rail - Type A - Both Sides (Add $4.55 per foot)
    Fixed Angle Guard Rail - Type A - Left Side (Add $2.28 per foot)
    Fixed Angle Guard Rail - Type A - Right Side (Add $2.28 per foot)
    Fixed Angle Guard Rail - Type B - Both Sides (Add $4.55 per foot)
    Fixed Angle Guard Rail - Type B - Left Side (Add $2.28 per foot)
    Fixed Angle Guard Rail - Type B - Right Side (Add $2.28 per foot)
    Fixed Channel Guard Rail - Both Sides - 3-1/2" Tall (Add $13.47 per foot)
    Fixed Channel Guard Rail - Left Side - 3-1/2" Tall (Add $6.73 per foot)
    Fixed Channel Guard Rail - Right Side - 3-1/2" Tall (Add $6.73 per foot)
  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 2

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 2 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 2
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: 110 lbs.

    Lead Time to Ship: Contact us for options.

    Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.

    Shipping & Handling Estimate

    $95.99
  • Galvanized Steel Gravity Roller Conveyor

    19GSR-13-3-5
    Brand: Hytrol
    Base Price (per conveyor)
    $232.50
    Overall Width (in)
    16
    Roller Centers (in)
    3
    Equipment Options
    $0.00
    Conveyor Color
    Conveyor Guard Rail
    Configured Price
    $232.50
    Conveyor Quantity
    1
    Supports (2 each)
    $158.80 ($158.80 ea.)
    Total Support Quantity
    2
    Shipping & Handling Estimate
    $95.99
    Total Price
    $487.29

    The configured product is ready to be ordered. If more information is necessary, check the box below.

-or-

Galvanized Steel Gravity Roller Conveyor

Brand: Hytrol
Model Number: 19GSR-13-3-5
Base Price (per conveyor) $232.50
Overall Width (in)16
Roller Centers (in)3
Overall Length (ft)5
Equipment Options
$0.00
Configured Price $232.50
Conveyor Quantity 1
Supports $158.80
Price Per Conveyor (2 each) $158.80 ea.
Total Support Quantity 2
Shipping & Handling Estimate $95.99
Total Price $487.29
-or-
Available on completion of Step 6
