Flat-Belt Driven Live Roller Conveyor

Brand: Hytrol
Model Number:
ABLR_Green
Enlarge

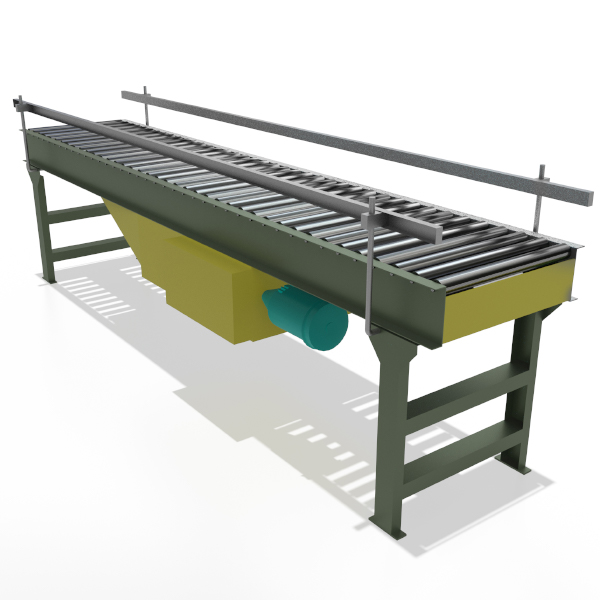

ABLR_Green
  • AB_R_Blue
  • ABLR_Beige

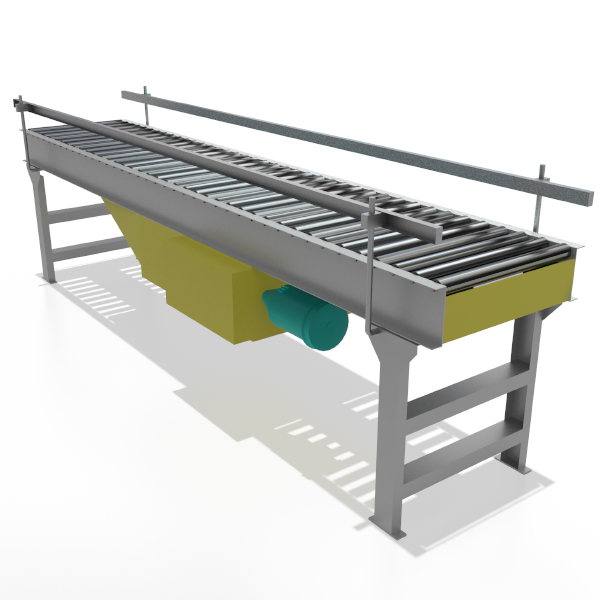

  • ABLR__Gray

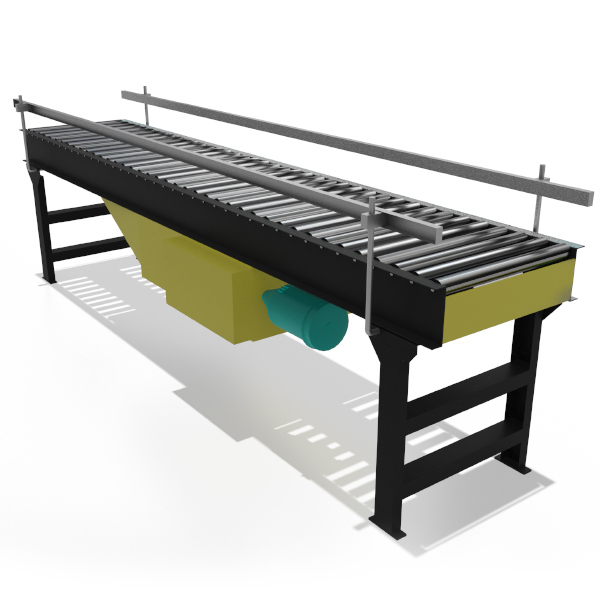

  • ABLR_Black

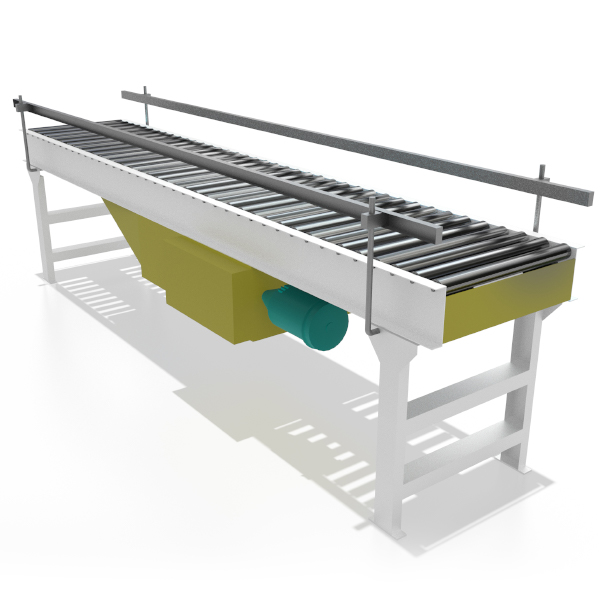

  • ABLR_White
  • 190LRC_front_view2

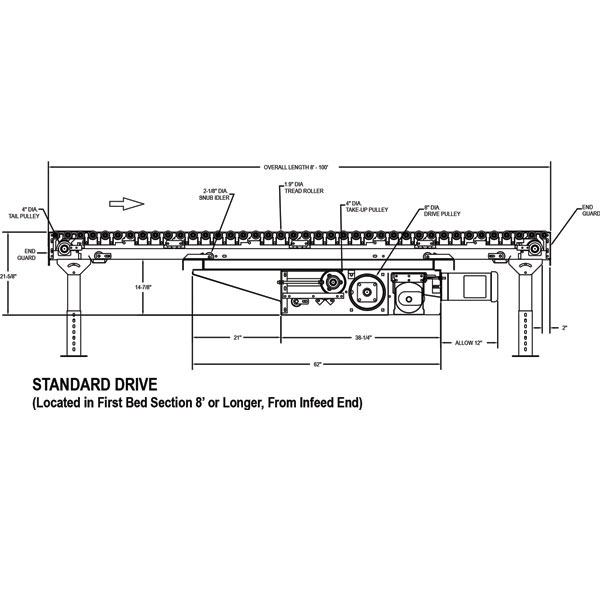

  • 190LR_drawing_side
  • 190LR_drawing_side

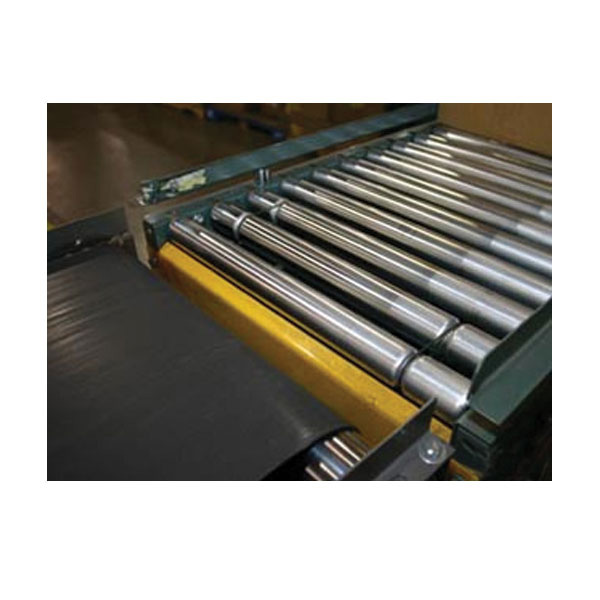

  • conveyor_flatbelt_1
  • conveyor_flatbelt_3

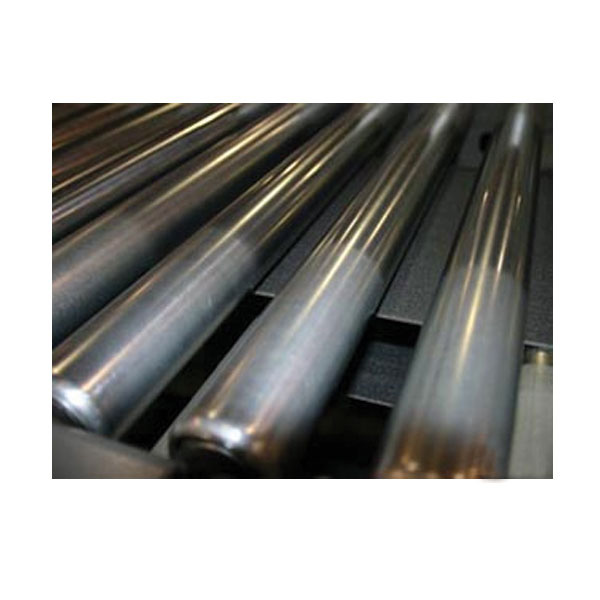

  • conveyor_flatbelt_2
  • ABLR_Green

Model Number: MODEL-OAW-BEDW-OAL

The Model ABLR is a horizontal belt driven live roller conveyor, designed to transport medium to heavy cartons. Applications vary from manufacturing to distribution operations.
  • The Model ABLR is a horizontal belt driven live roller conveyor, designed to transport medium to heavy cartons. Applications vary from manufacturing to distribution operations.
    • 11 Bed Widths
    • Center Drive
    • Reversible
    • Adjustable MS-Type Floor Supports Available
  • Belt Width 12 in, 6 in, 8 in, 16 in
    Bed Width 15 in, 17 in, 19 in, 21 in, 23 in, 25 in, 27 in, 31 in, 33 in, 37 in
    Drive Pulley 8 in. dia. with 1 7/16 in. dia. shaft at bearings.
    Snub Idler Adjustable 2 1/8 in. dia. pre-lubricated ball bearings.
    Return Idler Adjustable 1.9" diameter pre-lubricated ball bearings.
    Speed Reduction Sealed worm gear C-face speed reducer. No. 50 roller chain to drive pulley.
    Belt Type 6 in. Black Ultimate 140 SD.
    Height Added to Supports 6 3/4 in
    Roller Centers 3 in
  •
