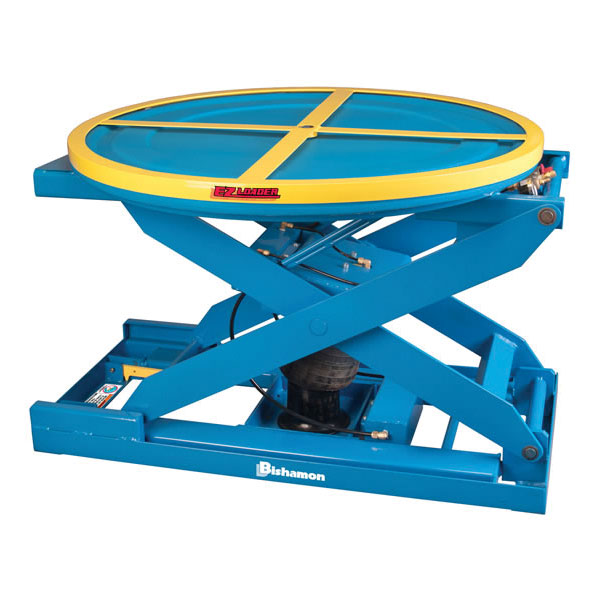

Bishamon EZ Loader Pallet Positioner

EZ Loader - Self-Leveling Pallet Positioner - 43" Dia. x 3500 lbs Capacity

EZ-Loader
Enlarge
EZ-Loader
  • There are no alternate images available for this product.

  •
  • Automatic work positioners are used to manually load and unload pallets. They improve efficiency and reduct injury as well as reducing loading and unloading time. It features:
    • Self leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity
    • Integral rotator ring helps eliminate reaching and stretching
    • Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform
    • A three position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure
    • Secured ball bearing center pivot of the 43” diameter rotator ring provides smooth, even rotation
    • Pressure relief valve prevents excess pressure build-up
    • Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish
    • Rollers are entrapped in the base frame and platform for added stability
    • A safety finger guard eliminates pinch points with the rotator ring spoke and bearings
    • Integral maintenance blocks
    • EZ Loaders arrive at your facility fully assembled - just add air!
    • Easily transported with a fork truck or via optional portability packages
    • The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).
  • Capacity 4000 lbs
    Platform Diameter 43 in diameter
    Lowered Height 10.5 in
    Raised Height 30.5 in
    Vertical Travel 20 in
    Finish Standard powder coated finish
    Self-Leveling Capacity Range Min 250 lbs
    Self-Leveling Capacity Range Max 3500 lbs
    Product Weight (lbs.) 500 lbs
  • Bishamon Industries Corporation warrants its products to be free from defects in material and workmanship for a period of one (1) year from the date of initial shipment. This warranty shall not apply to any misuse, mishandling, accident, shipping, alteration, or unauthorized repair of any Bishamon product or part. Call for complete details.
  •

    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Cut Sheet
Brand: Bishamon
Model Number: EZ Loader
Automatic work positioners are used to manually load and unload pallets. They improve efficiency and reduce injury as well as reducing loading and unloading time.

Choose Your Base Options

Choose Your Quantity

Shipping Estimate

Shipping Weight: lbs.

Lead Time to Ship: Standard product will be shipped in 2 weeks, contact us for other options.

Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.

Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendations)
Spell Check
-or-
Brand: Bishamon
Model Number: EZ Loader
Each Price $2,654.00
