Drag Chain Roller-to-Roller Conveyor

Brand: Hytrol
Model Number: 25-CRR-5-19-5

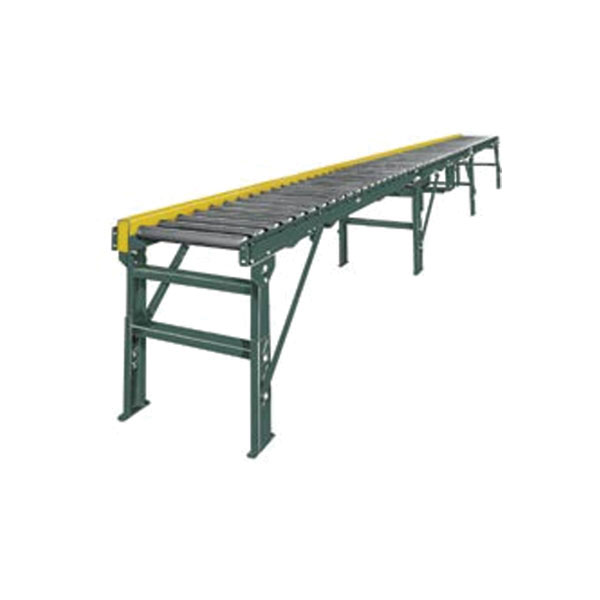

Hytrol-25CRR-pallet-conveyor
Enlarge
The heavy design of the 25-CRR allows it to be used for conveying higher load capacities such as loaded pallets and drums. Chain driven rollers make it ideal for conveying oily parts in bottling and steel industries.
  • The heavy design of the 25-CRR allows it to be used for conveying higher load capacities such as loaded pallets and drums. Chain driven rollers make it ideal for conveying oily parts in bottling and steel industries.
    • 15 Bed Widths
    • Center Drive
    • Reversible
    • Chain Driven Rollers
  • Height Added to Supports 4 3/8 in
    Overall Length 20 ft
    Overall Width 40 1/4 in, 34 1/4 in, 42 1/4 in, 58 1/4 in, 50 1/4 in, 64 1/4 in, 54 1/4 in, 46 1/4 in, 30 1/4 in, 26 1/4 in, 70 1/4 in, 28 1/4 in, 24 1/4 in, 22 1/4 in, 36 1/4 in
    Standard Speed Constant 30 FPM.
    Bearings Sealed, pre-lubricated ball bearings.
    Bed 2 1/2 in. dia. x 11 ga. unplated tread rollers with No. 50 roller chain. Rollers mounted in 4 in. x 4 ga. powder painted steel channel opposite chain guard and 6 in. x 4 ga. powder painted steel channel on chain guard side.

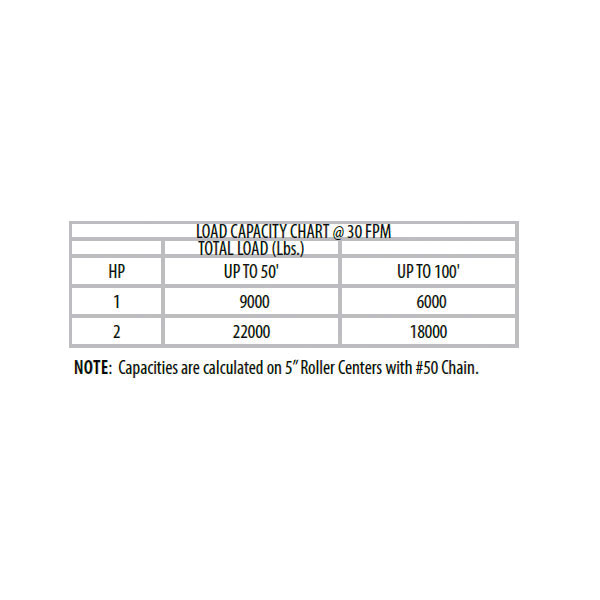

    Capacity Maximum load per linear foot of conveyor 300 lbs. with supports on 10 ft. centers, 1000 lbs. with supports on 5 ft. centers. NOT TO EXCEED CAPACITY IN CHART

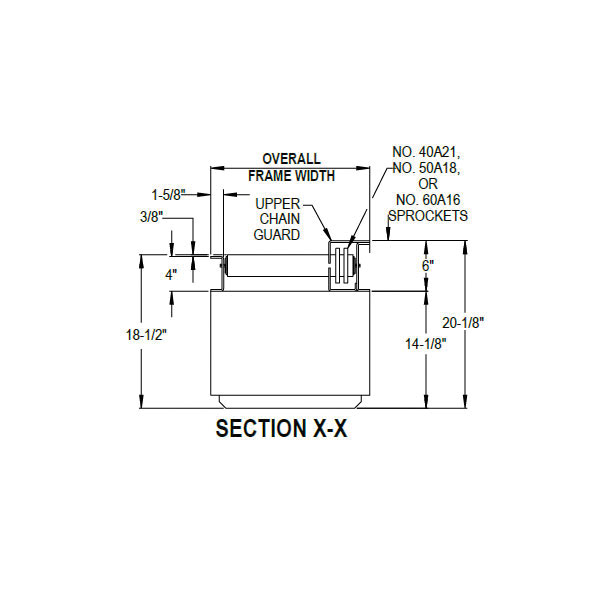

    Chain Guard Formed steel, upper and lower chain guard mounted to top and bottom of channel frame to totally enclose drive chains.
    Conveyoing Surface Width 15 3/4 in, 17 3/4 in, 21 3/4 in, 23 3/4 in, 63 3/4 in, 35 3/4 in, 33 3/4 in, 29 3/4 in, 39 3/4 in, 27 3/4 in, 47 3/4 in, 19 3/4 in, 57 3/4 in, 51 3/4 in, 43 3/4 in
    Drive Assembly Center drive can be placed in any section of conveyor length, specify. Chain guard located on left hand side.
    Motor 1 HP-208/230/460/575V-3 Ph. 60 Hz. Totally Enclosed C-Face.
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Installation and Maintenance Manual
 Cut Sheet

  • Choose Your Base Options

    Roller Centers (in)


    Width Between Rails


    Overall Length (ft)


    Choose Your Quantity

    Number of conveyors. Each conveyor $3,371.00.

    Qty:

  • Chain Guard



  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 2

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 2 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 2
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: 638 lbs.

    Lead Time to Ship: Contact us for options.

    Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.

    Shipping & Handling Estimate

    $554.69

  • Drag Chain Roller-to-Roller Conveyor

    25-CRR-5-19-5
    Brand: Hytrol
    Base Price (per conveyor)
    $3,371.00
    Roller Centers (in)
    Width Between Rails
    19
    Equipment Options
    $0.00
    Chain Guard
    Formed steel, upper and lower chain guard mounted to top and bottom of channel frame to totally enclose drive chains.
    Configured Price
    $3,371.00
    Conveyor Quantity
    1
    Supports (2 each)
    $168.00 ($168.00 ea.)
    Total Support Quantity
    2
    Shipping & Handling Estimate
    $554.69
    Total Price
    $4,093.69

    The configured product is ready to be ordered. If more information is necessary, check the box below.

-or-

Drag Chain Roller-to-Roller Conveyor

Brand: Hytrol
Model Number: 25-CRR-5-19-5
Base Price (per conveyor) $3,371.00
Roller Centers (in)
Width Between Rails19
Overall Length (ft)5
Equipment Options
$0.00
Configured Price $3,371.00
Conveyor Quantity 1
Supports $168.00
Price Per Conveyor (2 each) $168.00 ea.
Total Support Quantity 2
Shipping & Handling Estimate $554.69
Total Price $4,093.69
