Configure Your Conveyor

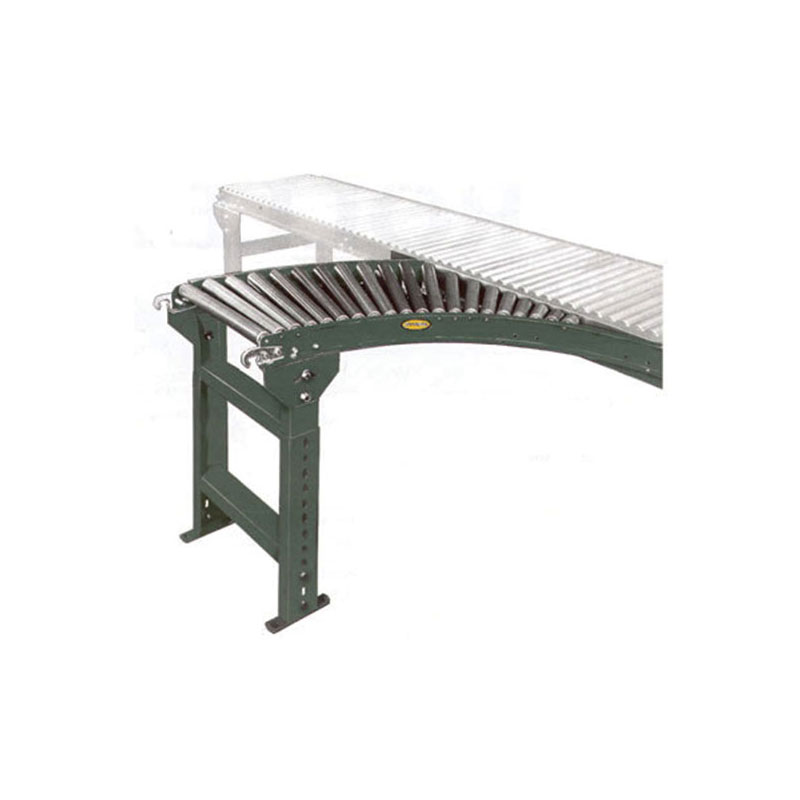

Aluminum 1 3/8" Diameter x 18 Ga. Gravity Roller Spur Conveyor

Brand: Hytrol
Model Number:
ssrs2
Enlarge
Model Number: MODEL-OAW-S

Gravity Roller Spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. Ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
  • Gravity Roller Spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. Ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.
    • 4 Widths
    • Powder Painted Aluminum Frames

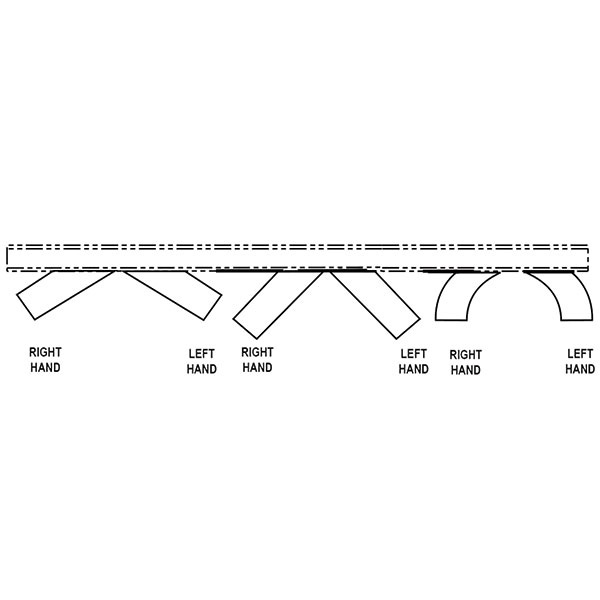

    • Right & Left Hand Units
    • Gravity Hooks & Bolts on One End

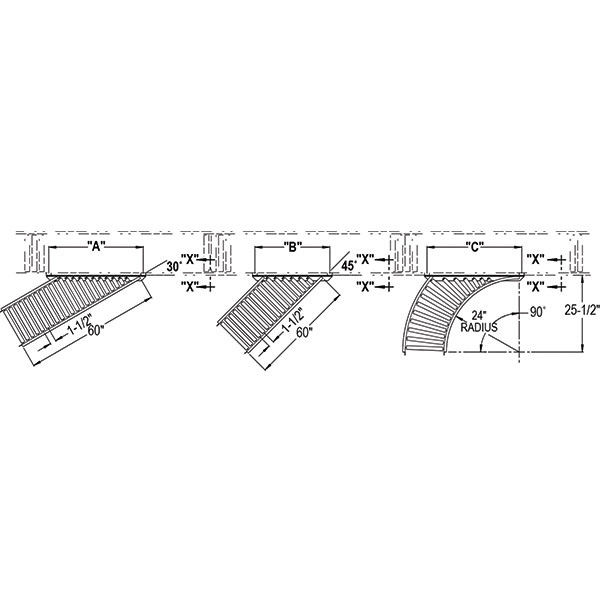

    • 30°, 45°, & 90° Spurs Available
  • Axles 1/4 in. dia. round
    Capacity 30 lbs per roller
    Couplings Butt Couplings supplied on one end.

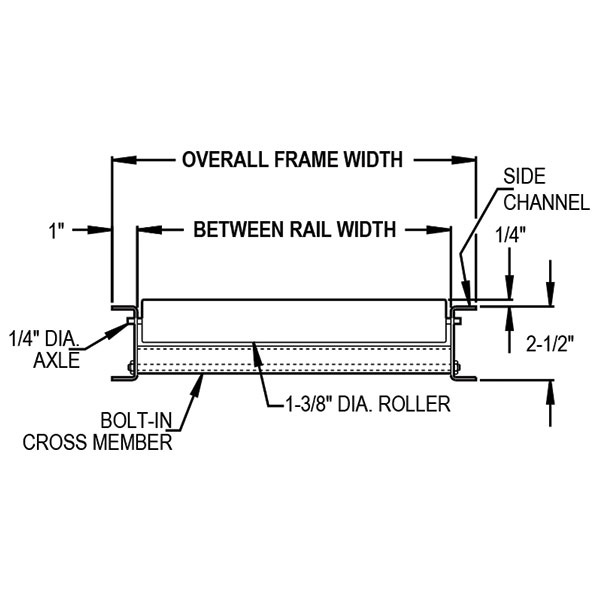

    Frame 2 1/2 in. deep x 1 in. flange x 1/8 in. heat-treated aluminum channel with bolt-in cross members.
    Height Added to Supports 2 3/4 in
    Spur Opening 48 in., 30 in., 18 in., 22 in., 24 in., 36 in., 35 in., 26 in., 50 in.
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Feature Sheet
 Cut Sheet

  • Choose Your Base Options

    Overall Width (in)


    Spur Angle



    Choose Your Quantity

    Number of conveyors. Each conveyor .

    Qty:

  • Conveyor Color

    Please note - colors other than green will extend lead time.  Contact for more details.



    Spur Flow - Side



    End

    Hooks and Bolts - Supplied on both ends of curves. Hooks must be removed from one end for installation.

    Square Ends - Butt couplings instead of hooks and bolts.



  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 0

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 0 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 0
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: lbs.

    Lead Time to Ship: Standard product will be shipped in 2 weeks, contact us for other options.

    Shipping and Handling Destination: Shipping and handling estimate calculation is for continental United States of America. If shipping outside of the continental United States of America, shipping and handling will be calculated and totalled upon final invoice.
