"Y" Switch

Brand: Hytrol
Model Number:
sys-y-switch-manual-control
Enlarge

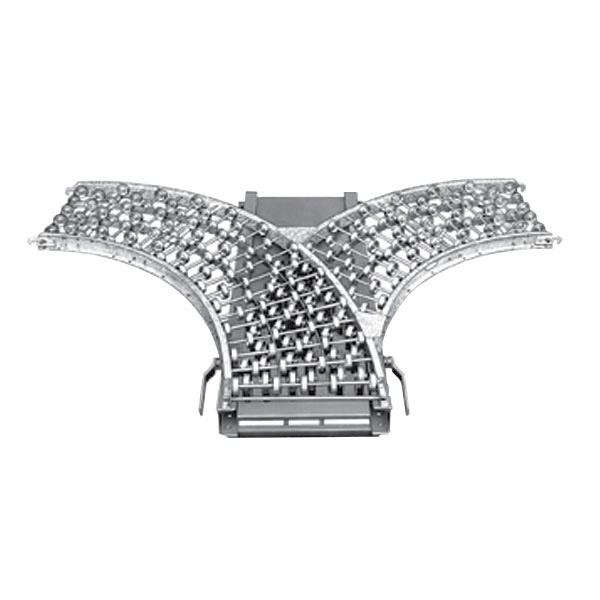

Y Switch provides simple method of diverting or converging products from one line to another. Normal flow is to left curve looking from handle end. Transfer mechanism is raised to transfer products to other curve.
  • Y Switch provides simple method of diverting or converging products from one line to another. Normal flow is to left curve looking from handle end. Transfer mechanism is raised to transfer products to other curve. Unit mounts on three stationary supports. Furnished with manual or pneumatic controls. Guard rails can be supplied–optional.
    • 4 Widths
    • Hand or Air Operated
    • 45° and 90° Curves Available

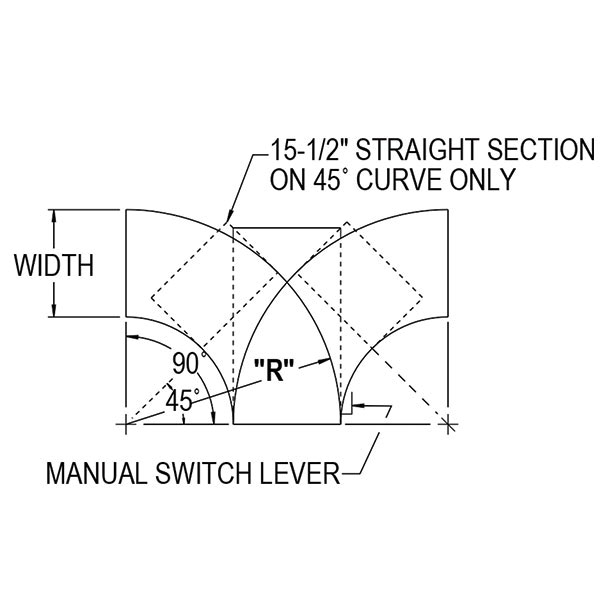

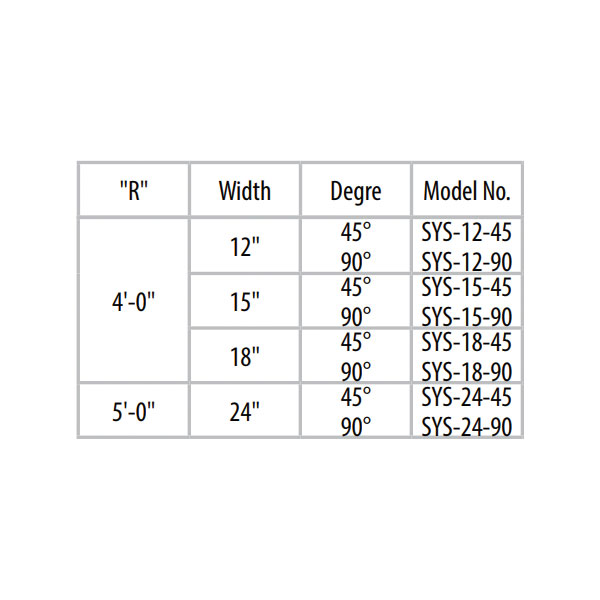

  • Radius "R" 4' or 5' - See Chart
  •


    1000 characters left
    Spell Check

    This item currently has no reviews. Be the first to review this item!
 Cut Sheet

  • Choose Your Base Options

    Degree


    Overall Width (in)



    Choose Your Quantity

    Number of conveyors. Each conveyor .

    Qty:

  • Conveyor Color

    Please note - colors other than green will extend lead time.  Contact for more details.



    Guard Rail



    Optional Control



  • To override the "Recommended Support Quantity" or to select different supports please select the check box below before continuing.

    Recommended Support Quantity: 0

    Floor Supports

    To calculate top of roller/belt height, add "Height Added to Supports" to the Support Height.


    Total Support Count:
    (Recommendation: 0 per converyor)

    Supports are an option on all conveyors. Supports are required at each location where bed sections join. Supports are commonly supplied on 10 ft. centers. 5 ft. centers is common to achieve extra load capacity. Please contact for more information.

    Actual Support Quantity: 0
  • Please tell us about your application, details of products being handled by this equipment. (max product size, min product size, other questions and make recommendation)

    255 characters left
    Spell Check

    Product Weight (in lbs)

    Product Type

    Some special characters will be automatically removed.

    50 characters left
    Spell Check

    Package Dimensions (in inches)

  • Calculate Your Shipping & Handling.

    Shipping Weight: lbs.

    Lead Time to Ship: Standard product will be shipped in 2 weeks, contact us for other options.
