viastore viaspeed Mini Load AS/RS | Automated Storage & Retrieval System

High-Performance Mini Load Storage and Retrieval

viastore’s viaspeed mini load crane for automated storage and retrieval systems (ASRS) is a compact, high-throughput solution for fast-moving small parts storage. This flexible system offers multiple load-handling device options, high acceleration and fast travel speeds for quick, reliable access to goods. Energy efficient features like lightweight design, energy compensation or recovery, and automatic standby mode ensure low-cost operation.

For increased storage height and payload capacity, choose the viaspeed XL. It offers the same great benefits as the viaspeed, but for taller systems up to 65 feet and payloads up to 660 lbs. It’s also suitable for cold storage environments down to -40°F.

viastore offers reliable, efficient, and flexible ASRS solutions to fit a variety of applications. No matter your challenges, Bastian Solutions can find the best automated storage solution to fit your operational requirements and business goals.



Ready to find your solution?

viastore-viaspeed-high-performance-storage-and-retrieval-system-for-miniloads

viastore viaspeed Mini Load AS/RS

Features & Benefits

  • High-throughput, high-density for small parts storage
  • Adaptable load handling devices for single, double or quadruple deep storage
  • Energy efficient features including energy equalization, energy refeed and automatic standby mode
  • High acceleration and travel speed for faster access to goods
  • Low cost operation


Applications

  • Storage for small parts or goods
  • Inventory storage for order fulfillment
  • Buffer storage
  • Production storage for raw materials, finished goods and WIP (work in progress inventory)


Specifications

viaspeed:

  • Maximum height: up to 45 ft.
  • Maximum payload: up to two 50kg containers (110.2 lbs.)
  • Minimum aisle width: 850 mm (33.5 in.)
  • Travel speed: up to 19 ft./sec.

viaspeed XL:

  • Maximum height: up to 20m (66ft.)
  • Maximum payload: up to 300kg (660 lbs.)
  • Minimum aisle width: 750 mm (29.5 in.)
  • Travel speed: up to 5 m/s (16.4 ft./sec.)
  • Temperature range: -40 °C to +45 °C (-40°F to +113 °F)



See More Solutions

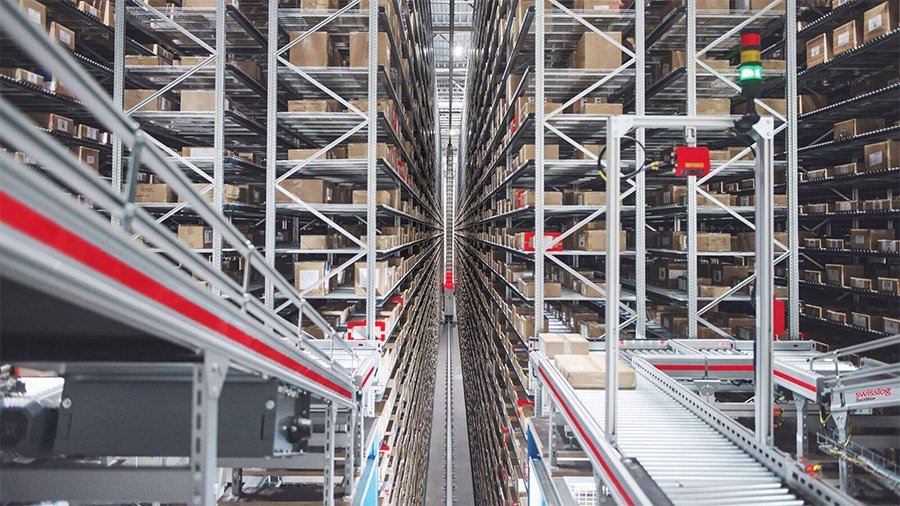

Swisslog mini load asrs
